Weather the Storm with YOUNG’s Precipitation Sensors
We specialize in delivering high-quality precipitation sensors designed for precision and durability. Our tipping bucket and precipitation gauge options offer reliable performance, even in harsh conditions. Trusted by professionals worldwide, our sensors are engineered to meet the demands of accurate and consistent precipitation measurement, making them the preferred choice for meteorological, environmental, and industrial applications.
Precipitation Sensors
Explore Our Precipitation Sensor Options
Tipping Bucket Rain Gauge:
Our Tipping Bucket Rain Gauge offers reliable and accurate rainfall measurement with its proven tipping bucket design. The bucket’s geometry and materials are optimized for quick water release, minimizing contamination and errors. With a 200 cm² catchment area and 0.1 mm resolution, it meets WMO standards. Built-in leveling screws and a bullseye level ensure easy and precise field adjustments. Collected precipitation is discharged through a tube for total rainfall verification.
Precipitation Gauge:
Our Precipitation Gauges measure rain and snow without any moving parts, making them perfect for use on moving platforms like buoys and ships. Their durable thermoplastic construction ensures excellent corrosion resistance and long-term reliability. Insulated housings and built-in heaters allow operation in freezing temperatures. Precipitation is measured in a capacitive chamber and converted into a linear voltage signal, which can be read by an external data logger.
Rain Gauge Calibrator:
The Rain Gauge Calibrator provides an easy and efficient method for checking rain gauge accuracy. A constant head adapter connects to the 1000 ml water container, regulating water flow through one of three precision nozzles.
What Makes us special
We’re a Weather Sensor Company Specializing in Reliability
Extreme Accuracy
Our weather sensors provide reliable, accurate data across a wide operating range that you can count on, which is why they’ve been named the industry’s golden standard.
Durability Tested
We rigorously test the durability of our sensors using a variety of methods, including high-speed wind tunnels, environmental chambers, and exposure to extreme weather conditions worldwide.
Ease of Use
We worked hard to ensure the installation and maintenance of our sensors is as simple as possible. Our experienced support team will work alongside you to ensure no problems pop up.
We harness over 60 years of experience to deliver the industry’s most accurate, reliable weather instrumentation while providing unmatched support. When you call, you will speak with a human, not a machine, and we will work alongside you to ensure that our products are delivering the results you deserve.
Discover why we have been named the gold standard in weather sensing technology.

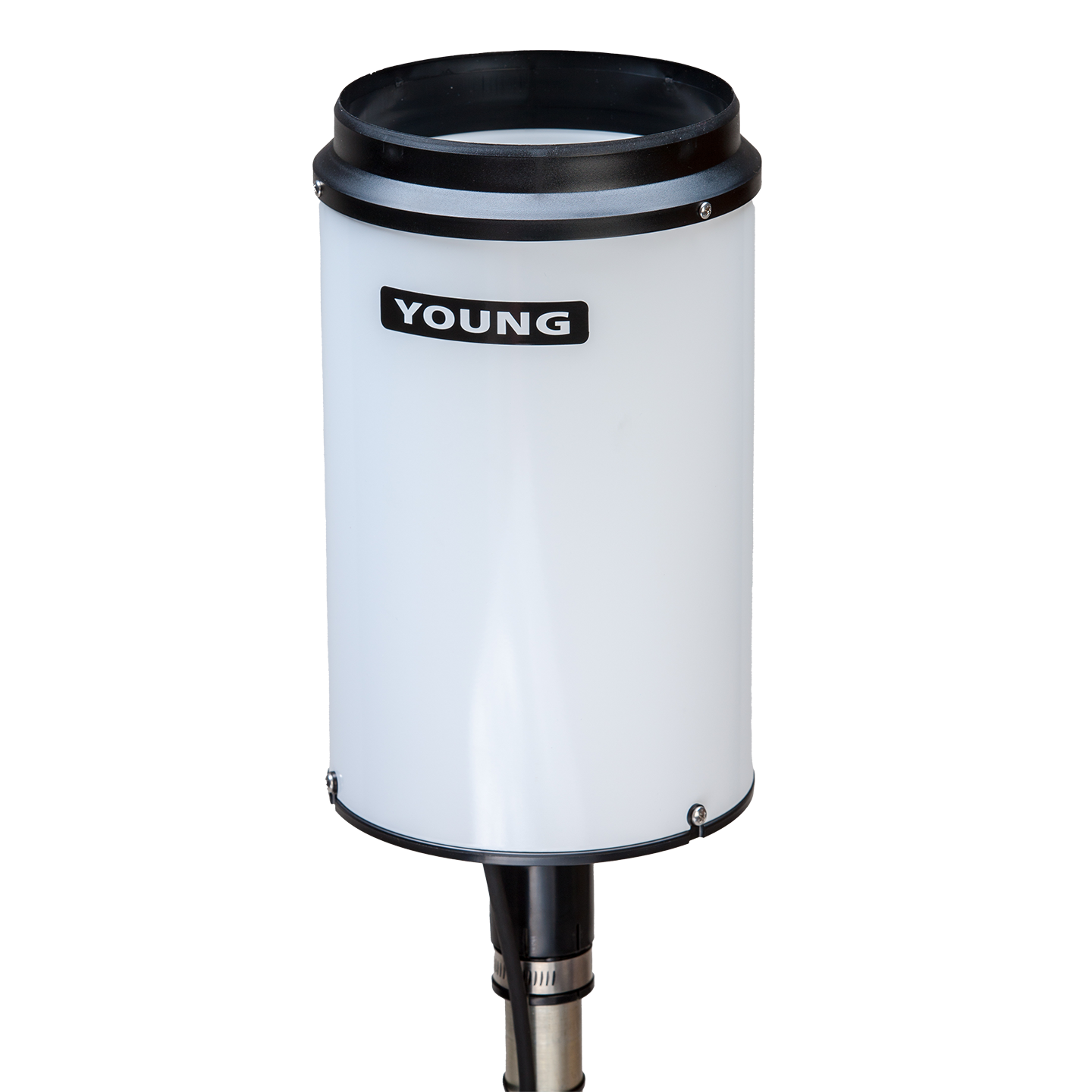

Tipping Bucket Rain Gauge
The YOUNG Tipping Bucket Rain Gauge utilizes a proven tipping bucket mechanism for simple and effective rainfall measurement. The bucket geometry and materials are specially selected for maximum water release, thereby reducing contamination and errors. Catchment area of 200 cm2 and measurement resolution of 0.1 mm meet the recommendations of the WMO. Leveling screws and bullseye level are built in for easy and precise adjustment in the field. Measured precipitation is discharged through a collection tube for verification of total rainfall.
Model 52202 is heated for operation in cold temperatures.
Model 52203 is unheated for use in moderate climates.
Marine grade Models 52202-20 and 52203-20 with a stainless-steel housing are available for coastal (salt air) or other corrosive environments.
An optional Bird Wire Assembly, Model 52250, may be use to discourage birds from perching on the funnel rim.
Heated models come with a standard 120 VAC to 24VAC power adapter for heater operation (230 VAC to 24 VAC for ‘H’ versions).
| Catchment Area: | 200 cm2 |
|---|---|
| Resolution: | 0.1 mm per tip |
| Accuracy: | 2% up to 25 mm/hr |
| Output: | Magnetic reed switch (normally open) |
| Operating Temperature: | -20 to +50°C (heated) |
| Power: | 18 Watts @24VAC for heater only |
| Heater Thermostat Setpoint: | 10°C ±3°C |
| Dimensions: | Overall Height: 39 cm (15.4in) |
| Weight: | 1.2 kg (2.6 lbs) |
| Shipping Weight: | 2.7 kg (6 lbs) |
Precipitation Gauge
The YOUNG Model 50202 and 50203 Precipitation Gauge accurately measures rain or snow precipitation without moving parts. Unlike conventional tipping-bucket and weighing gauges that are susceptible to motion, the gauge has no moving parts making it ideal for use on moving platforms such as buoys and ships. Durable thermoplastic construction offers excellent corrosion resistance along with long term reliability. Insulated housings and thermostatically controlled heaters permit operation at temperatures below freezing. Precipitation measurement is directed into a capacitive measuring chamber and converted into a linear voltage signal that can be read by an external data logger or recorder. Bird wires come standard with either model.
Model 50202 is heated for operation in cold temperatures (supplied with a 120 VAC to 24 VAC stepdown transformer; ‘H’ version supplied with a 230 VAC to 24 VAC transformer).
Model 50203 is unheated for use in moderate climates.
| Catchment Area: | 100 cm2 |
|---|---|
| Accuracy: | ±1 mm |
| Signal Output: | 0 to 5.00 VDC = 0 to 50 mm precipitation |
| Chamber Drain Time: | 30 seconds approx |
| Operating Temperature: | -20 to +50°C |
| Power Requirement: | Measuring Circuit: 8 to 30 VDC unregulated |
| Heater Thermostat Setpoint: | 10°C ±3°C |
| Dimensions: | Overall Height: 65 cm (25.6 in) |
| Weight: | 2.5 kg (5.5 lb) |
| Shipping Weight: | 4 kg (8.8 lb) |

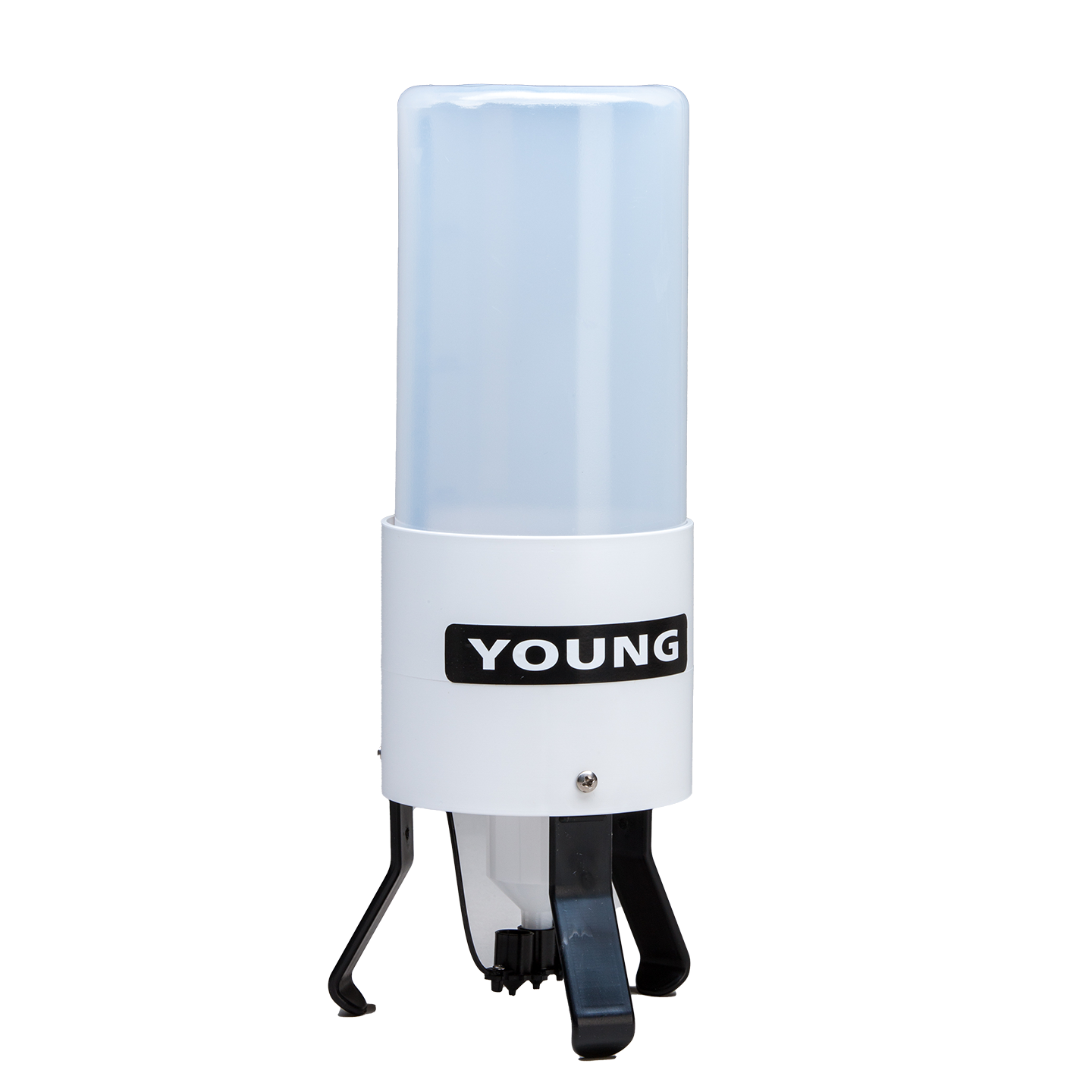

Rain Gauge Calibrator
The YOUNG Model 52260 Rain Gauge Calibrator offers a simple and convenient way to determine rain gauge accuracy. The constant head adapter attached to the 1000 ml water container regulates the flow of water through one of three flow (rate) nozzles. A stand for use with YOUNG Models 52202 and 52203 Tipping Bucket Rain Gauge is included (may also be used with other sensors).
| Materials: | Graduated 1000 ml bottle |
|---|---|
| Dimensions; | Overall height: 29 cm (11.4 in) |
| Weight: | 0.2 kg (0.5 lb) |
| Shipping Weight: | 0.8 kg (1.8 lb) |
